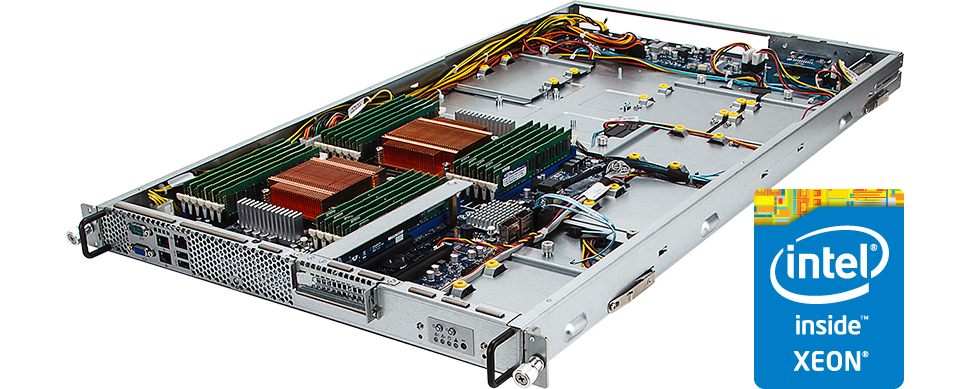

Спецификация | |
Форма фактор |
1U |
Доступ |
Спереди |
Отсеки для HDD / SSD |
6 x 3.5" внутренние с антивибрационным креплением |
Разъем питания |
Медный разъем |
Опции по материнским платам | ||
---|---|---|

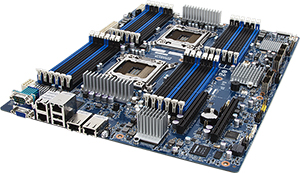

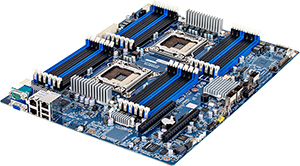

GA-7PPSH | GA-7PPSH2 | |
Form Factor | EEB compatible 305W x 395D mm |
EEB compatible 305W x 395D mm |
CPU | Supports Intel Xeon E5-2600 & E5-2600 V2 processors | Supports Intel Xeon E5-2600 & E5-2600 V2 processors |
Chipset | Intel C602 | Intel C602 |
Memory | 24 x DIMM slots ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333/(1600*) MHz 1.5V modules: 1066/1333/1600/(1866*) MHz *Supported by Intel Xeon E5-2600 V2 processors only |
24 x DIMM slots ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333/(1600*) MHz 1.5V modules: 1066/1333/1600/(1866*) MHz *Supported by Intel Xeon E5-2600 V2 processors only |
LAN | Dual 10G BASE-T port (Intel X540) Dual Gigabit Ethernet LAN ports (Intel I350-AM2) 1 x Management LAN |
Dual Gigabit Ethernet LAN ports (Intel I350-AM2) 1 x Management LAN |
Video | Integrated in Aspeed AST2300 1920x1200@60Hz 32bpp |
Integrated in Aspeed AST2300 1920x1200@60Hz 32bpp |
SAS | 8 x SAS 6Gb/s via LSI SAS2008 4 to 8 x SAS 3Gb/s by upgrade ROM (option) |
2 x Mini-SAS connectors (disabled, can be enabled via upgrade ROM) |
SATA | 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports via Mini-SAS |
2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports via Mini-SAS |
RAID | Intel SW RAID 0/1/5/10 LSI IR RAID 0/1/10 |
Intel SW RAID 0/1/5/10 |
Expansion Slots |
1 x PCIe x16 (@Gen3 x16 bus) slot 1 x PCIe x16 (@Gen3 x8 bus) slot |
1 x PCIe x16 (@Gen3 x16 bus) slot 1 x PCIe x16 (@Gen3 x8 bus) slot |
Rear I/O | 1 x VGA 1 x Serial 2 x USB 2.0 5 x RJ45ВЉ 1 x Power button ВЉ1 x ID Switch button with LED ВЉ1 x NMI button ВЉ1 x BMC reset button ВЉ1 x Power status LED |
1 x VGA 1 x Serial 2 x USB 2.0 3 x RJ45 ВЉ1 x Power button ВЉ1 x ID Switch button with LED ВЉ1 x NMI button ВЉ1 x BMC reset button ВЉ1 x Power status LED |
Server Management |
Aspeed AST2300 IPMI 2.0 iKVM |
Aspeed AST2300 IPMI 2.0 iKVM |

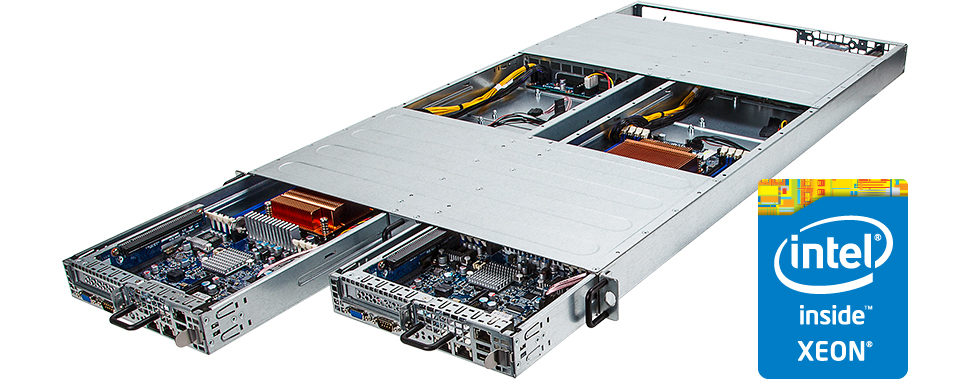

Спецификация | |
Форма фактор |
1U |
Доступ |
Спереди |
Отсеки для HDD / SSD |
2 x 3.5" внутренние с антивибрационным креплением |
Разъем питания |
Медный разъем |
Опции по материнским платам | ||
---|---|---|

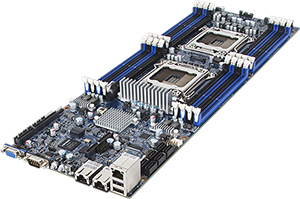

GA-7PTSH | GA-7PTSV | |
Form Factor | Proprietary half-width 165W x 490D mm |
Proprietary half-width 165W x 415D mm |
CPU | Supports Intel Xeon E5-2600 & E5-2600 V2 processors | Supports Intel Xeon E5-2400 processors |
Chipset | Intel C602 | Intel C602 |
Memory | 16 x DIMM slots ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333/(1600*) MHz 1.5V modules: 1066/1333/1600/(1866*) MHz *Supported by Intel Xeon E5-2600 V2 processors only |
12 x DIMM slots ECC & non-ECC UDIMM/RDIMM modules supported Single and dual rank UDIMM modules up to 8GB supported Single, dual and quad rank RDIMM modules up to 32GB supported 1.35V modules: 1066/1333 MHz 1.5V modules: 1066/1333/1600 MHz |
LAN | Dual Gigabit Ethernet LAN ports (Intel I350-AM2) 1 x Management LAN |
Dual Gigabit Ethernet LAN ports (Broadcom BCM5720) 1 x Management LAN |
Video | Integrated in Aspeed AST2300 1920x1200@60Hz 32bpp |
Integrated in Aspeed AST2300 1920x1200@60Hz 32bpp |
SAS | - | - |
SATA | 2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports SAS ports available via upgrade ROM |
2 x SATA III 6Gb/s ports 4 x SATA II 3Gb/s ports |
RAID | Intel SW RAID 0/1/5/10 | Intel SW RAID 0/1/5/10 |
Expansion Slots |
1 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slot 1 x Low profile PCIe x16 (@Gen3 x16 bus) slot |
1 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slot 1 x Low profile PCIe x16 (@Gen3 x16 bus) slot |
Rear I/O | 2 x USB 2.0 ВЉ2 x RJ45 1 x 10/100 management LAN ВЉ1 x Serial ВЉ1 x VGA ВЉ1 x Power button ВЉ1 x ID Switch button with LED ВЉ1 x NMI button ВЉ1 x BMC reset button ВЉ1 x Power status LED |
2 x USB 2.0 ВЉ2 x RJ45 1 x 10/100 management LAN ВЉ1 x Serial ВЉ1 x VGA ВЉ1 x Power button ВЉ1 x ID Switch button with LED ВЉ1 x NMI button ВЉ1 x BMC reset button ВЉ1 x Power status LED |
Server Management |
Aspeed AST2300 IPMI 2.0 iKVM |
Aspeed AST2300 IPMI 2.0 iKVM |

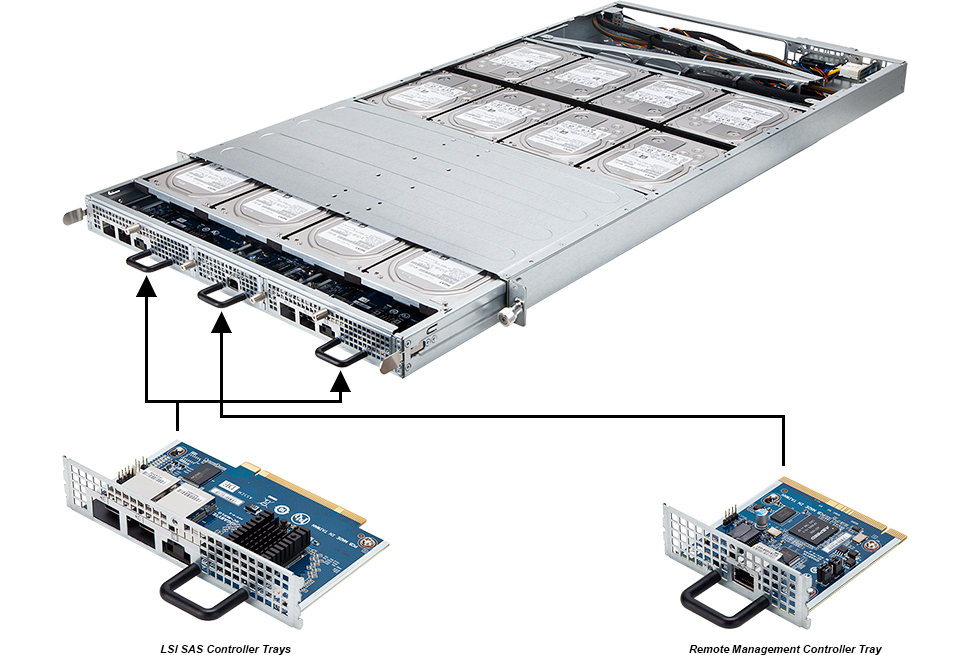

Спецификация | |
Форма фактор |
1U |
Доступ |
Спереди |
Отсеки для HDD / SSD |

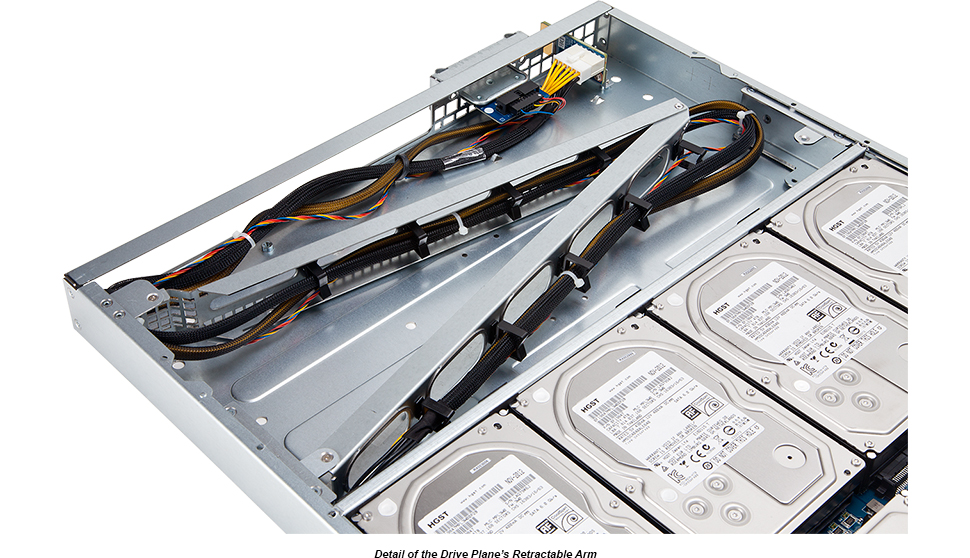

16 x 3.5" внутренние с антивибрационным креплением, выдвижная плата позволяет осуществлять «горячую» замену |
SAS / SATA |
2 x LSI SAS2X28 expander trays 2 x Internal Mini-SAS connectors for JBOD extensions 4 x External SAS 6GB/s ports for inter-rack connections |
Управление |
Aspeed AST1050 controller IPMI 2.0 1 x 10/100/1000Mbps management port |
Разъем питания |
Медный разъем |
