Опции

Network Cards

	GC-MLBZ1	GC-MLIZS	GC-MLIZ
Rear I/O	2 x 10GbE SFP+ ports	2 x 10GbE SFP+ ports	2 x 10GbE BASE-T ports
Controller	Broadcom BCM57810S	Intel 82599	Intel X540
Interface	PCIe x8 (2.0 x8 bus)	PCIe mezzanine card (2.0 x8 bus)	PCIe mezzanine card (2.0 x8 bus)
Dimensions	145 x 68.9 mm	76.8 x 98 mm	76.8 x 98 mm

Storage Cards

	GC-MSEE4	GC-MSLZ1	GC-MSLZ2
I/O	4 x Internal SATA III 6GB/s ports	2 x Internal mini-SAS for 8 x SAS 6GB/s ports	2 x Internal mini-SAS for 8 x SAS 6GB/s ports
Controller	Marvell 9230	LSI SAS2208	LSI SAS2008
RAID	0/1/10	Hardware RAID RAID 0/1/5/6/10/50/60 RAID 5/6 XOR engine (single pass)	Firmware RAID RAID 0/1/1E/10 No MegaRAID
Interface	PCIe 2.0 x4	Mezzanine card (2.0 x8 bus)	PCIe x8 (2.0 x8 bus)
Dimensions	79.3 x 68.9 mm	76.8 x 98 mm	145 x 68.9 mm

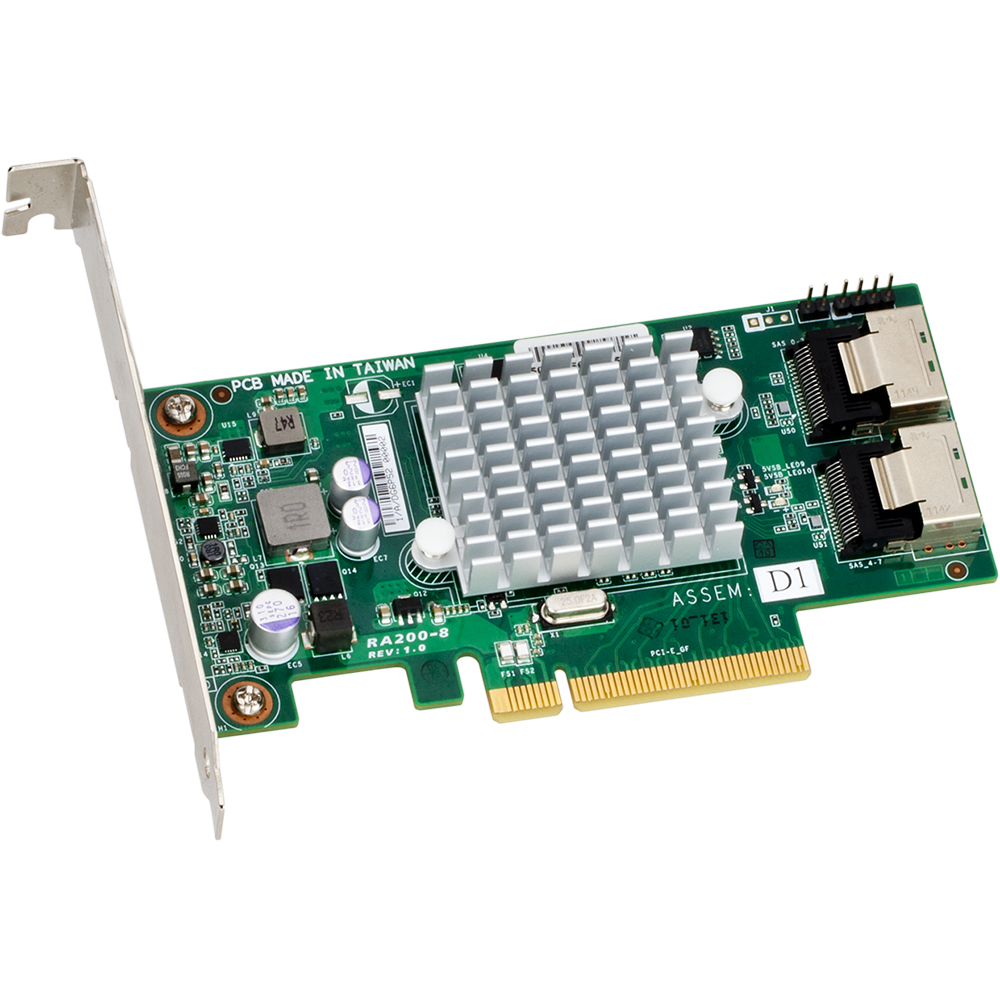

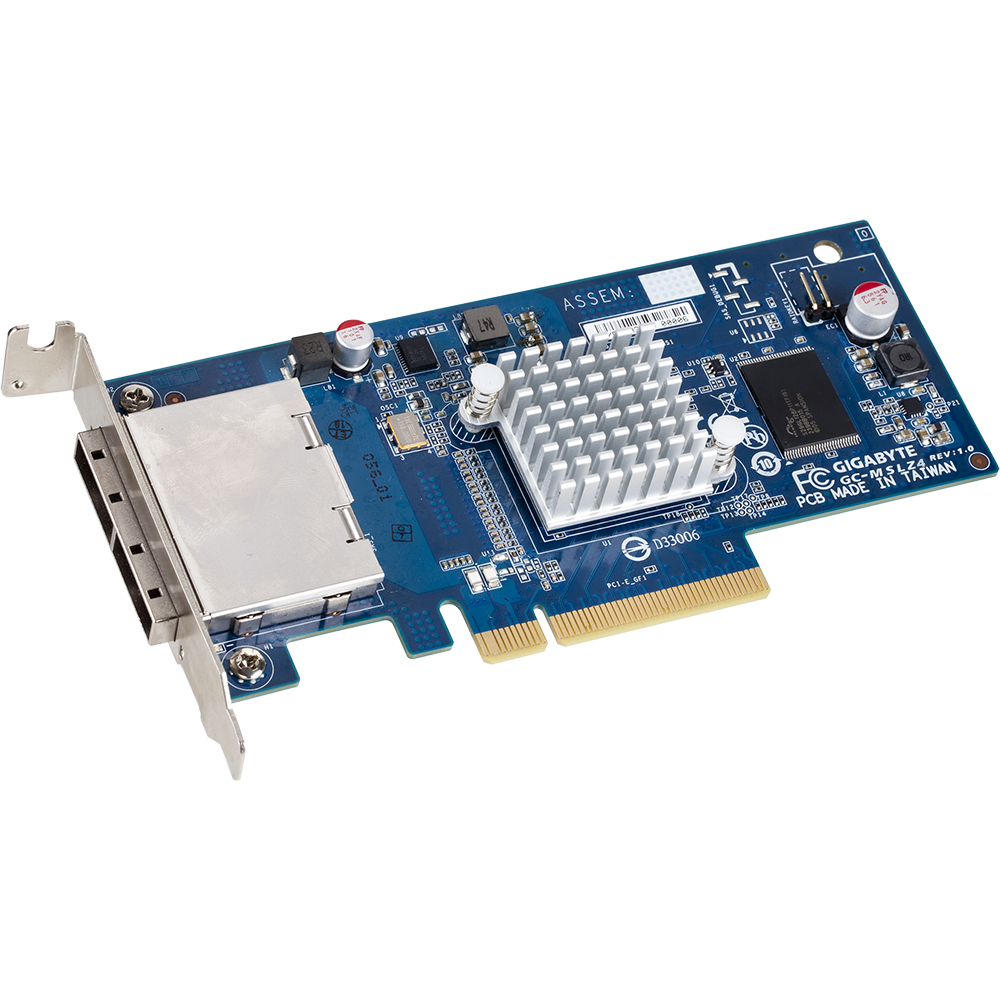

	GC-MSLZ3	GC-MSLZ4	RA200-8
I/O	2 x External mini-SAS for 8 x SAS 6GB/s ports	2 x External mini-SAS for 8 x SAS 6GB/s ports	2 x Mini-SAS for 8 x SAS 6GB/s ports
Controller	LSI SAS2008	LSI SAS2008	LSI SAS2308
RAID	Firmware RAID RAID 0/1/1E/10/5/50 MegaRAID support	Firmware RAID RAID 0/1/1E/10 No MegaRAID	Firmware RAID RAID 0/1/1E/10
Interface	PCIe x8 (2.0 x8 bus)	PCIe x8 (2.0 x8 bus)	PCIe x8 (3.0 x8 bus)
Dimensions	145 x 68.9 mm	145 x 68.9 mm	145 x 68.9 mm



	RA201-A
I/O	2 x Mini-SAS for 8 x SAS 6GB/s ports
Controller	LSI SAS2208
RAID	Hardware RAID RAID 0/1/5/6/10/50/60
Interface	PCIe x8 (3.0 x8 bus)
Dimensions	165 x 68.9 mm

Video Cards

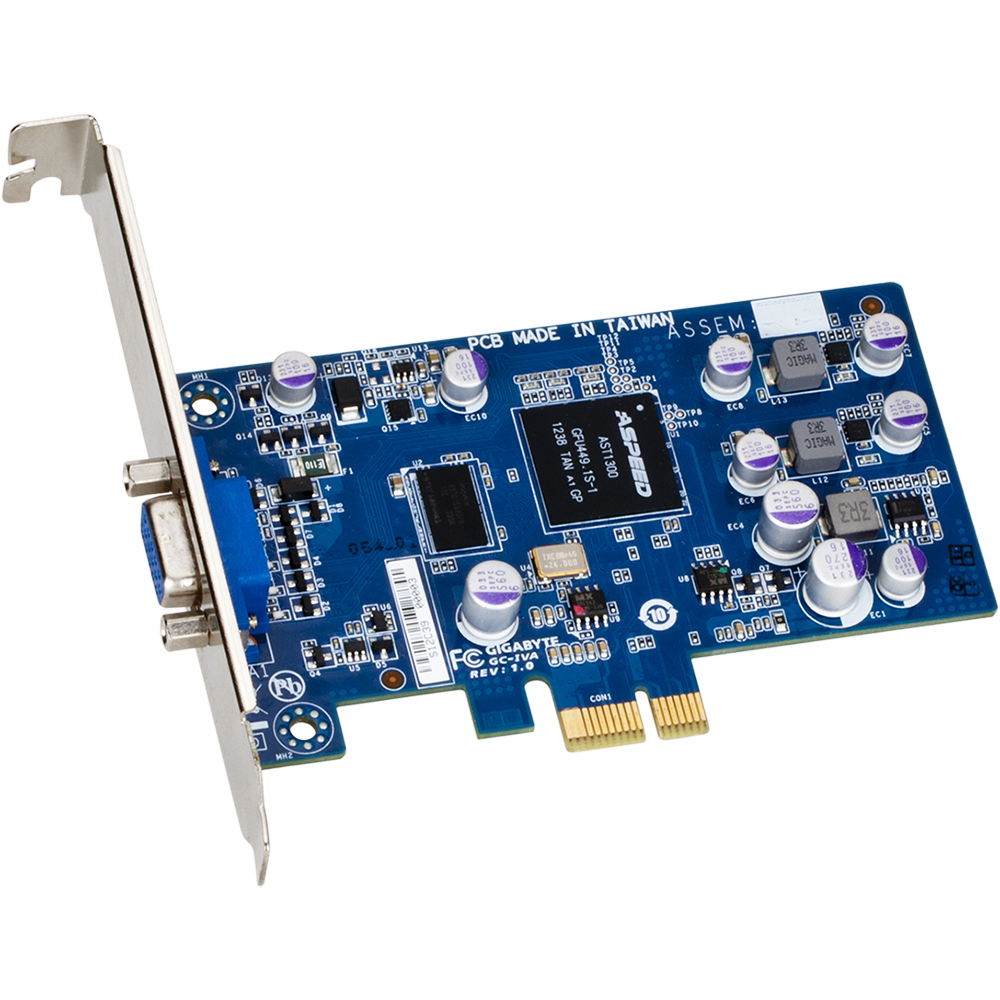

	GC-IVA
I/O	1 x VGA port
Controller	Aspeed AST1300
Resolution	1920x1200 @60Hz 32bpp
Interface	PCIe x1 (2.0 x1 bus)
Dimensions	110 x 68.9 mm

Upgrade ROM

ROM SKU	SCU Ports	Protocol Enabled	Intel RSTe SAS RAID 5	Order Info
No ROM (C602 chipset)	4 ports	SATA only	SATA RAID 5	-
1	4 ports	SATA / SAS	No	25FCZ-A03C60-A7R
2	4 ports	SATA / SAS	Yes	25FCZ-A03C61-A7R
5	8 ports	SATA / SAS	No	25FCZ-A03C62-A7R
6	8 ports	SATA / SAS	Yes	25FCZ-A03C63-A7R
9	8 ports	SATA only	SATA RAID 5	25FCZ-A03C64-A7R
